Szczegóły Produktu:
Zapłata:
|
| Model: | LGB-30DV | Ultimate Total Pressure: | 5Pa |
|---|---|---|---|
| Motor Power kW: | 4 | Power Consumption 50Hz kW: | 1.8 |
| Inlet mm: | 40 | Outlet mm: | 40 |
| Cooling Water Supply Pressure MPa: | 0.1-0.5 | ||
| High Light: | pressure pumping equipment,industrial pumps |
||
APPLICATIONS

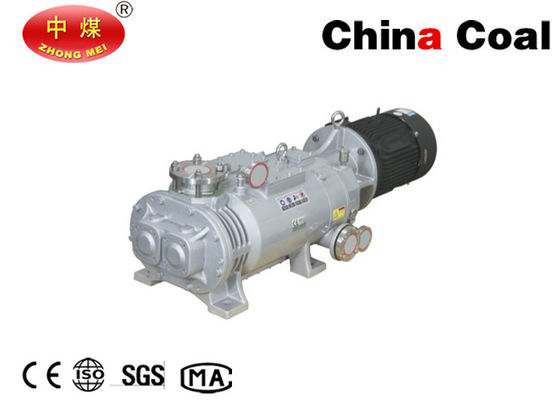

LGB series variable pitch screw dry vacuum pumps can be widely used in chemical industry, pharmaceutical industry, food industry, solar, metallurgical system, heat treatment, electronics industry, ect.
SPECIFICATIONS
|
Model |
LGB-30DV |
LGB-70DV |
LGB-100DV |
LGB-200DV |
||
|
Displacement |
50Hz |
L/s |
30 |
70 |
92 |
183 |
|
m/h |
110 |
250 |
330 |
660 |
||
|
cfm |
65 |
147 |
195 |
389 |
||
|
60Hz |
L/s |
36 |
83 |
111 |
222 |
|
|
m/h |
130 |
300 |
400 |
800 |
||
|
cfm |
77 |
177 |
236 |
471 |
||
|
Ultimate Total Pressure |
Pa |
5 |
1 |
1 |
1 |
|
|
Torr |
0.037 |
0.0075 |
0.0075 |
0.0075 |
||
|
Motor Power |
kW |
4 |
7.5 |
11 |
15 |
|
|
Power Consumption |
50Hz |
kW |
1.8 |
5 |
7 |
10.2 |
|
60Hz |
kW |
3.0 |
6 |
8.6 |
12.8 |
|
|
Inlet |
mm |
40 |
50 |
65 |
100 |
|
|
Outlet |
mm |
40 |
40 |
50 |
65 |
|
|
Cooling Water |
Supply Pressure |
MPa |
0.1-0.5 |
0.1-0.5 |
0.1-0.5 |
0.1-0.5 |
|
Flow Rate |
L/min |
5-10 |
10-15 |
10-15 |
15-20 |
|
|
Temperature |
C |
5-32 |
5-32 |
5-32 |
5-32 |
|
|
Connection |
DN15 |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
|
|
Weight |
Without Motor |
kg |
190 |
290 |
370 |
580 |
