| Application: | Boats hydraulic system | Direction of rotation: | Clockwise |
|---|---|---|---|
| feature: | Low noise | Power: | Hydraulic |
| Seals: | Perbunan, Viton | Structure: | Piston Pump |
| Type the shaft: | SAE splined, SAE parallel with key | Usage: | oil |
| High Light: | variable piston pump,oil piston pump |
||
Fixed Displacement Axial Piston Pump Troubleshooting 350 Bar Pressure
Quick details
Constant Power Control Axial Piston Pump CY Series
Rated pressure 315 bar
Peak pressure 400bar
displacement is 80 cc
Keyed shaft, single pump

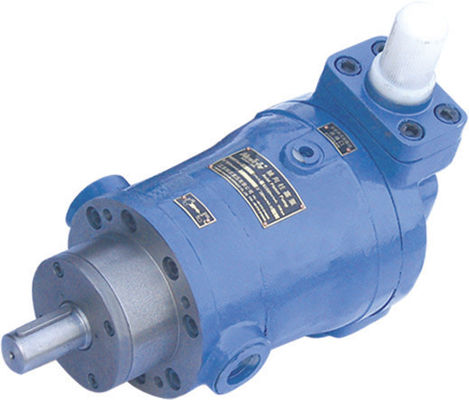

It is Axial piston pump, Rated pressure 315 bar, Peak pressure 400bar, displacement is 80 cc, Constant power control, Clockwise Rotation, Perbunan seals, Keyed shaft, single pump.
Specifications:
|
Dimension model |
10(16)YCY |
25(40)YCY |
63(80)YCY |
160YCY |
250(400)YCY |
|
A |
φ125 |
φ150 |
φ190 |
φ240 |
φ280 |
|
B(f9) |
φ75 |
φ100 |
φ120 |
φ150 |
φ180 |
|
C |
27.5 |
32.5 |
42.8 |
59 |
63.9 |
|
D(h6) |
φ25 |
φ30 |
φ40 |
φ55 |
φ60 |
|
E |
4 |
4 |
4 |
4 |
5 |
|
F |
30 |
45 |
50 |
100 |
100 |
|
G |
40 |
52 |
60 |
106 |
110 |
|
H |
41 |
54 |
62 |
110 |
112 |
|
I |
86 |
104 |
122 |
180 |
212 |
|
J |
109 |
134 |
157 |
230 |
272(277) |
|
K |
194 |
246 |
300 |
411 |
492(502) |
|
L |
71 |
83 |
108 |
141 |
170 |
|
M |
M14×1.5 |
M14×1.5 |
M18×1.5 |
M22×1.5 |
M22×1.5 |
|
N |
M10 |
M10 |
M12 |
M16 |
M20 |
|
P |
|
|
|
M16 |
M20 |
|
Q(h9) |
8 |
8 |
12 |
16 |
18 |
|
R |
φ100 |
φ125 |
φ155 |
φ198 |
φ230 |
|
S |
142 |
172 |
200 |
340 |
420 |
|
T |
M22×1.5 |
M33(M42)×2 |
M42(M48)×2 |
φ55 |
φ64(φ66) |
|
U |
|
|
|
φ64 |
φ76 |
|
X |
294 |
362 |
439 |
595 |
690(700) |
|
Y |
258 |
317 |
390 |
533 |
629(639) |
|
Z |
50 |
66 |
74 |
100 |
100 |
|
EE |
100 |
120 |
140 |
173 |
210 |
|
FF |
288 |
351 |
400 |
448 |
516 |
Parameter
|
Operating pressure range |
Pressure at port B |
|
~ inlet |
Nominal pressure PN----------------280bar |
|
|
Peak pressure PMAX-----------------------350bar |
|
Absolute pressure at port S |
Clearance work pressure (10% cycle)---------315bar |
|
P abs min------------------------0.8bar |
Applications with intermittent operating pressures up to |
|
P abs max------------------------30bar |
215 bar at 10% duty are permitted . |
Case drain pressure
Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than
The inlet pressure at port S,but no higher than 2 bar absolute pressure.
Applications:
Hydraulic system. Boats Hydraulic system. Pressure Machine, Cut machine, Package Machine
Description:
| Ordering Code | Detail | |||
| HA10V(S) | Model Variable pump,Swashplate design | Rated pressure 280bar | Peak pressure 350bar | |
| O | Mode of operation Pump,Circuit | |||
| 28 | Displacement 18 . 28 . 45 . 71 . 100 . 140(ml/r) | |||
| DR | Two point ,direct control ,DRG--- Remote pressure control | Pressure control,Pressure and flow control | DFR1 Pressure and flow control ,Orifice in X-channel closed | Pressure . flow and torque control |
| / | ||||
| 31 | Series: 31 Series | |||
| R | Direction of rotation R--- Clockwise | L--- Anti-clockwise | ||
| - | ||||
| P | P-- Perbunan | Seals V-- Viton | ||
| S | Type the shaft:P--- Metric parallel with key | S-- SAE splined | K-- SAE parallel with key | U-- SAE splined,reduced dia. |
| C | Mounting flange:C--- SAE 2-hole | D--- SAE 4-hole | A- ISO 2-hole | B- ISO 4-hole |
| 62 | Port form:11—Back SAE, Port for SAE flage rear,fixing thread metric | service Lines 12---Both sides SAE,SAE flage on opposite side,fixing thread UNC | 61--- SAE,UNC Screw thread, SAE flage rear ,fixing thread UNC | 62---Both sides SAE,UNC Screw thread, SAE flage on opposite side,fixing thread UNC |
| NOO | Thru-form:N00- Nowhere shaft | without through drive | K**--- Thru | with through drive |
Advantage:
Good quality, Competitive price and quick delivery.
Low noise, Small Volume
