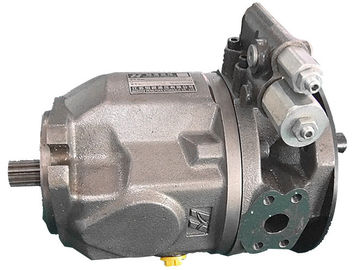

Hydraulic Axial Piston Pumps Flow Control , Concrete Truck Pump A10VSO18

Hydraulic Axial Piston Pumps Flow Control , Concrete Truck Pump A10VSO18
Hydraulic Axial Piston Pumps Flow Control , Concrete Truck Pump A10VSO18

Duży Obraz :  Hydraulic Axial Piston Pumps Flow Control , Concrete Truck Pump A10VSO18

Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: Hengyuan Hydraulic
Orzecznictwo: ISO9000
Model Number: A10VSO18/28/45/71/100/140
Zapłata:
Minimum Order Quantity: 1 pc
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month
Szczegółowy opis produktu
Application: Concrete pump truck, Boats hydraulic system, Excavator, Loader Direction of rotation: Clockwise
feature: Low noise Mounting flange: SAE 2 hole
Power: Hydraulic Pressure: High Pressure
Seals: Perbunan, Viton Structure: Piston Pump
Type the shaft: SAE splined, SAE parallel with key Usage: oil
High Light:

axial flow pump

,

oil piston pump



Hydraulic Axial Piston Pumps Flow Control , Concrete Truck Pump A10VSO18



Quick details


High Pressure Control Axial Piston Hydraulic Pump
displacement is 18cc/28cc/45cc
Pressure and Flow control
Perbunan seal
Low noise, Small Volume

Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.
Pressure and Flow control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 2 hole UNC inch thread
Thru-drive Rear Cover, can connect another pump



Parameter





Operating pressure range

Pressure at port B

~ inlet

Nominal pressure PN----------------280bar



Peak pressure PMAX-----------------------350bar

Absolute pressure at port S

Clearance work pressure (10% cycle)---------315bar

  P abs min------------------------0.8bar

Applications with intermittent operating pressures up to

  P abs max------------------------30bar

215 bar at 10% duty are permitted .

     Case drain pressure

Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than

The inlet pressure at port S,but no higher than 2 bar absolute pressure.




Specifications:



Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than

The inlet pressure at port S,but no higher than 2 bar absolute pressure.

Specifications:







16/18

28

45

71

100

140

Displacement



Vg  max

cm3

18

28

45

71

100

140

Max speed



nmax

rpm

3300

3000

2600

2200

2000

1800

Max. flow

in  nmax

qv

L/min

59.4

84

117

156

200

252

in 1500 r/min

27

42

68

107

150

210

Max. power (Δp=280bar)


in nmax

Pmax

Kw

27.7

39

55

73

93

118

in 1500 r/min

12.6

20

32

50

70

98

Max. torque (Δp=280bar)


in Vg  max

Tmax

Nm

80.1

125

200

316

445

623

Weight



m

Kg

12

15

21

33

45

60




Applications:




Hydraulic System, Engineering machine, Concrete pump truck, Boats hydraulic system. Excavator, Loader







Description:

Ordering Code Detail
HA10V(S) Model  Variable pump,Swashplate  design  Rated pressure 280bar  Peak pressure 350bar
O Mode of operation Pump,Circuit
28 Displacement 18 . 28 . 45 . 71 . 100 . 140(ml/r)
DR Two point ,direct control    ,DRG---       Remote pressure control Pressure control,Pressure and flow control DFR1  Pressure and flow control ,Orifice in X-channel closed Pressure . flow and torque control
/
31 Series:  31 Series
R  Direction of rotation  R---  Clockwise                                                                          L---  Anti-clockwise
-
P P-- Perbunan  Seals V--  Viton
S Type the shaft:P--- Metric parallel with key  S-- SAE splined    K-- SAE parallel with key U-- SAE splined,reduced dia.
C Mounting flange:C--- SAE 2-hole  D--- SAE 4-hole A- ISO 2-hole   B- ISO 4-hole
62 Port form:11—Back SAE, Port for SAE flage rear,fixing thread metric service Lines  12---Both sides SAE,SAE flage on opposite side,fixing thread UNC   61---  SAE,UNC Screw thread,  SAE flage rear ,fixing thread UNC 62---Both sides SAE,UNC Screw thread, SAE flage on opposite side,fixing thread UNC
NOO Thru-form:N00- Nowhere shaft   without through drive   K**--- Thru with through drive



Advantage:


Good quality, Competitive price and quick delivery.
Low noise, Small Volume
