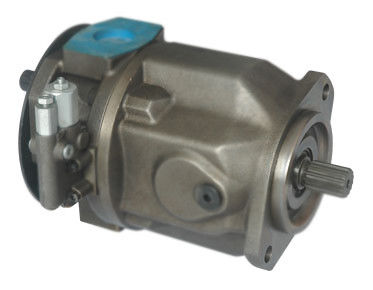

Boats Hydraulic System Axial Piston Pumps High Pressure Perbunan A10VSO140

Boats Hydraulic System Axial Piston Pumps High Pressure Perbunan A10VSO140
Boats Hydraulic System Axial Piston Pumps High Pressure Perbunan A10VSO140

Duży Obraz :  Boats Hydraulic System Axial Piston Pumps High Pressure Perbunan A10VSO140

Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: Hengyuan Hydraulic
Orzecznictwo: ISO9000
Model Number: A10VSO18/28/45/71/100/140
Zapłata:
Minimum Order Quantity: 1 pc
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month
Szczegółowy opis produktu
Application: Concrete pump truck, Boats hydraulic system, Excavator, Loader Direction of rotation: Clockwise
feature: Low noise Mounting flange: SAE 2 hole
Power: Hydraulic Pressure: High Pressure
Seals: Perbunan, Viton Structure: Piston Pump
Type the shaft: SAE splined, SAE parallel with key Usage: oil
High Light:

variable piston pump

,

oil piston pump





Boats Hydraulic System Axial Piston Pumps High Pressure Perbunan A10VSO140





Quick details


Clockwise Rotation High Pressure Axial Piston Pump


 displacement 100cc/140cc
Pressure and Flow control
SAE 2 hole UNC inch thread
Thru-drive Rear Cover
for Hydraulic system. Ship Hydraulic system







Specifications:

Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than

The inlet pressure at port S,but no higher than 2 bar absolute pressure.

Specifications:







16/18

28

45

71

100

140

Displacement



Vg  max

cm3

18

28

45

71

100

140

Max speed



nmax

rpm

3300

3000

2600

2200

2000

1800

Max. flow

in  nmax

qv

L/min

59.4

84

117

156

200

252

in 1500 r/min

27

42

68

107

150

210

Max. power (Δp=280bar)


in nmax

Pmax

Kw

27.7

39

55

73

93

118

in 1500 r/min

12.6

20

32

50

70

98

Max. torque (Δp=280bar)


in Vg  max

Tmax

Nm

80.1

125

200

316

445

623

Weight



m

Kg

12

15

21

33

45

60



Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.
Pressure and Flow control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 2 hole UNC inch thread
Thru-drive Rear Cover, can connect another pump




Parameter





Operating pressure range

Pressure at port B

~ inlet

Nominal pressure PN----------------280bar



Peak pressure PMAX-----------------------350bar

Absolute pressure at port S

Clearance work pressure (10% cycle)---------315bar

  P abs min------------------------0.8bar

Applications with intermittent operating pressures up to

  P abs max------------------------30bar

215 bar at 10% duty are permitted .

     Case drain pressure

Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than

The inlet pressure at port S,but no higher than 2 bar absolute pressure.



Applications:


Hydraulic System, Engineering machine, Concrete pump truck, Boats hydraulic system. Excavator, Loader


Advantage:


Good quality, Competitive price and quick delivery.
Low noise, Small Volume









Description:

Ordering Code Detail
HA10V(S) Model  Variable pump,Swashplate  design  Rated pressure 280bar  Peak pressure 350bar
O Mode of operation Pump,Circuit
28 Displacement 18 . 28 . 45 . 71 . 100 . 140(ml/r)
DR Two point ,direct control    ,DRG---       Remote pressure control Pressure control,Pressure and flow control DFR1  Pressure and flow control ,Orifice in X-channel closed Pressure . flow and torque control
/
31 Series:  31 Series
R  Direction of rotation  R---  Clockwise                                                                          L---  Anti-clockwise
-
P P-- Perbunan  Seals V--  Viton
S Type the shaft:P--- Metric parallel with key  S-- SAE splined    K-- SAE parallel with key U-- SAE splined,reduced dia.
C Mounting flange:C--- SAE 2-hole  D--- SAE 4-hole A- ISO 2-hole   B- ISO 4-hole
62 Port form:11—Back SAE, Port for SAE flage rear,fixing thread metric service Lines  12---Both sides SAE,SAE flage on opposite side,fixing thread UNC   61---  SAE,UNC Screw thread,  SAE flage rear ,fixing thread UNC 62---Both sides SAE,UNC Screw thread, SAE flage on opposite side,fixing thread UNC
NOO Thru-form:N00- Nowhere shaft   without through drive   K**--- Thru with through drive
