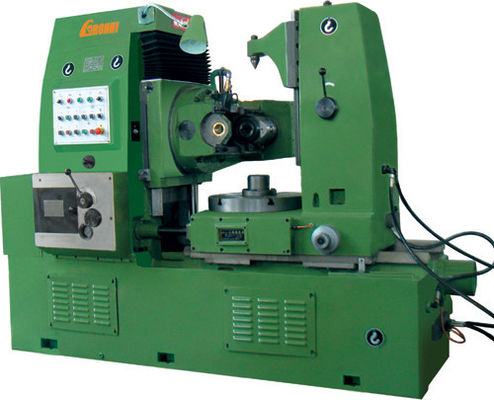

Professional Hydraulic Gear Hobbing Machine , diameter 510mm Work table
Y3150K gear hobbing machine with good rigidity, high working accuracy and suitable for large or single production.
Y3150K gear hobbing machine
Features:
1.
1.
Quick Details:
| Condition: |
New
|
Place of Origin: |
Liaoning,China (Mainland)
|
Brand Name: |
GUANHUA
|
| Model Number: |
Y3150K
|
Type: |
Horizontal
|
CNC or Not: |
Not
|
| Voltage: |
380V,
|
Power(KW): |
5.5KW
|
Dimension(L*W*H): |
2450x1272x1790mm
|
| Weight: |
5300kg
|
Certification: |
ISO9001:2000,
|
Warranty: |
one year
|
Model: Y3150K
Main parameter:
1, Range of processing
① Max. workpiece diameter: 500mm
② Max. module: 8mm
③ Max. width: 250mm
④ Min. Number of Gear on workpiece:6 tooth
2, Tool post
① Max. swivel Angle of tool post : 240°
② Max. travel of tool post(Vertical): 300mm
③ Min. reading of swivel angle of tool post:6′
④ Vertical move speed of tool post:0.52 m / min
⑤ Vertical move amount of tool post(manual):0.754mm
⑥ Step of feeding amount(Vertical):12step
⑦ Range of feed(vertical):0.4~4mm / rpm.
3, Working table
① Work table diameter:510mm
② Work table bore diameter:80mm
③ Movement per revolution Horizontal(manual):1mm
④ Min. reading move horizontal:0.01mm
⑤ Hydraulic drive movement horizontal:50mm
⑥ Distance between tailstock end face and worktable surface:380-850mm
4, Hobbing spindle
① Max. hob diameter/lengthen:160mm/160mm
(2). Tie rod threading diameter:M16
(3) Taper of hob arbor fitting::M.T.5
(4) Max. hob axial movement:55mm
(5) Distance between hob axis and worktable surface:235-535mm
(6) Distance between hob and worktable center:20-330mm
(7) Range of spindle speed:40~250rpm
(8) Step of spindle:9step
5, Motor and machine weight
① Motor: 5.5kw / 1440rpm
② Axial fast motor(Vertical): 0.75kw / 1380rpm
③ Radial fast motor:0.75kw / 1380rpm
④ Motor of hydraulic pump:1.1kw / 1000rpm
⑤ N.W/G.W:4500kg/5300kg
⑥ Machine size(L xWxH): 2450x1272x1790mm
6, Others:
① Diameter of hob arbor:φ22mm,φ27mm,φ32mm
② Arbor diameter:φ30mm
Advantage:
1. Professional maker.
2. Popular in the world.
3. Good quality and competitive.
