| Power source: | AC | Nazwa handlowa: | Hengda |
|---|---|---|---|
| Model: | WH-1.0/40 | Speed: | 790 r.p.m |
| Weight: | 470 Kg | Diemnsion: | 1400*840*840 mm |
| High Light: | high pressure air compressor,quiet air compressor |
||

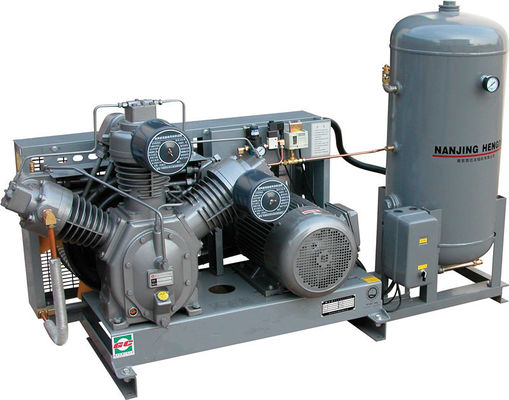

AC 11kw Oilless Low Pressure Piston Air Compressor With Tank For Mining 40 Bar
Quick Detail:
|
Name |
Air compressor |
Brand Name |
Hengda |
|
Capacity |
1 M3/Min |
Pressure |
40 Bar |
|
Function |
compressed air |
Usage |
Supply compressed air for Blowing PET bottle |
Applications:
1. Supply compressed air
2. Supply comressed air for pneumatic parts of filling machine, packing machines.
Specifications
High pressure compressor used high pressure air compressor
1. Air capacity: 1.0 M3/min
2. working pressure: 40bar
3. Power: 11kw
30BAR-40BAR High pressure compressor 40bar High pressure compressor used high pressure air compressor
1. Main data
|
Model |
Air capacity (M3/min) |
Working pressure (Bar) |
Power(Kw) |
Speed(r.p.m) |
Weight(Kg) |
|
VH-0.7/30 |
0.7 |
30BAR |
7.5 |
680 |
310 |
|
WH-1.0/30 |
1.0 |
11 |
600 |
430 |
|
|
WH-1.2/30 |
1.2 |
15 |
760 |
450 |
|
|
WH-1.5/30 |
1.5 |
18.5 |
790 |
520 |
|
|
WH-2.0/30 |
2.0 |
22 |
670 |
610 |
|
|
WH-2.35/30 |
2.35 |
25 |
760 |
620 |
|
|
2-WH-3.0/30 |
3.0 |
2*18.5 |
790 |
1150 |
|
|
3-WH-3.6/30 |
3.6 |
3*15 |
700 |
1580 |
|
|
VH-0.17/35 |
0.17 |
35BAR |
2.2 |
660 |
110 |
|
VH-0.65/35 |
0.65 |
9.0 |
605 |
420 |
|
|
WH-1.1/35 |
1.1 |
15 |
900 |
475 |
|
|
WH-2.0/35 |
2.0 |
22 |
670 |
615 |
|
|
WH-2.2/35 |
2.2 |
25 |
735 |
600 |
|
|
VH-0.3/40 |
0.3 |
40BAR |
5.5 |
500 |
290 |
|
WH-1.0/40 |
1.0 |
11 |
790 |
470 |
|
|
49SH-2.6/40 |
2.6 |
25 |
625 |
900 |
|
|
49SH-3.0/40 |
3.0 |
30 |
695 |
920 |
|
|
2-49SH-6.0/40 |
6.0 |
2*30 |
695 |
2100 |
|
|
4-WH-4.0/40 |
4.0 |
4*11 |
790 |
2400 |
|
|
6-WH-6.0/40 |
6.0 |
6*11 |
790 |
3600 |
2. Inspection method:
CAGI
3. Inspection standard:
-AISI
-AMS
-ANSI
-ASME
-ASTM
-AGMA
-AGMA
-NEMA
-VDI
-CAGI-NPEUROP
-MS
4. Technical characteristics:
4.1 Automatic pressure unloading system, ensure machine starting without loading.
4.2 With exhaust check valve on outlet.
4.3 Removable type inlet silencing filter, 10 micron precision.
4.4 Normal inertia flywheel, 2 root V belt drive.
4.5 Splashing lubrication to all moving Parts.
4.6 Light alloy pistons, with PTFE.
4.7 Cast iron cylinder head, independent valve seat.
4.8 Automatic hoop valve piston rings, big flow, more action, high efficiency.
4.9 World famous brand rolling bearing, ensure the stable operation unit.
4.10 Enough space between the cylinder and the crankcase design, avoid friction between connecting rod, moving parts and crankcase.
4.11 With Safety Valve Between after-cooling
The quality of our products can keep up with international standard as introduction of foreign technology.
High efficiency,high performance engergy saving,reliability and long lift are the principle characteristics o HENGDA high pressure air compressor.The Free air delivery from 0.15m3/min to 6.0m3/min.HENGDA makes a very wide model of rang of compressor to meet a wide rand of industrial application and requirement , especially for PET BLOWING Industry. Every machine is equipped with starting,unloading solenoid valve,auto condensate drain valve and advanced capacity control to make machine to operate safe and stable.
.
