Automatic 10 Bar Low Pressure Piston Air Compressor V Type 0.8 M3/min Output

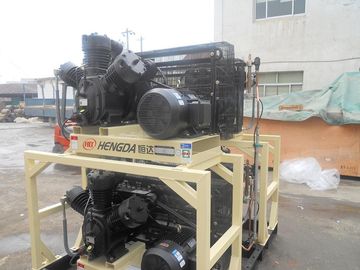

Duży Obraz : Automatic 10 Bar Low Pressure Piston Air Compressor V Type 0.8 M3/min Output

Szczegóły Produktu:

Place of Origin:	China
Nazwa handlowa:	StepChina
Model Number:	V-0.8/10

Zapłata:

Minimum Order Quantity:	1
Cena:	Negotiation
Packaging Details:	wooden case
Delivery Time:	15 work days

Kontakt

Szczegółowy opis produktu

Power source:	AC	Nazwa handlowa:	Hengda
Model:	V-0.8/10	Speed:	910 r.p.m
Weight:	357 Kg	Diemnsion:	1465×680×1130 mm
High Light:	quiet air compressor , low pressure air compressor

Automatic 10 Bar Low Pressure Piston Air Compressor V Type 0.8 M3/min Output

Quick Detail:

Name	Air compressor	Brand Name	Hengda
Capacity	1.5 M3/Min	Pressure	30 Bar
Function	compressed air	Usage	Supply compressed air for PET bottle blowing

Applications:

1. Supply high pressure compressed air

2. High pressure compressed air for bottle blow molding.

Specifications

air compressor
1. FAD: 0.8m3/min
2. Pressure: 10bar
3. Speed: 910rpm
4. CE certificate

Detailed Configuration:

1. The compressor can remove waste and dirt automatically by after cooling system.

High-quality air out ed with a special, highly effective air cooling chiller of advanced design.

2. Market leader “Hoerbiger” main air valve with large capacity. Its high efficiency characteristic

ensures the stable running of the compressor.put due to economical dirt removal system in 3 stages.

3. The compressor is equipped with a special,highly effective air cooling chiller of advanced design.

Specification for air compressor:

Model		F.A.D (m3/min)	Pressure (MPa/max)	Power (KW)	Speed(r/min)	Size (mm)	Weight (kg)
V-type	V-0.8/10	0.8	1.0	7.5	910	1465×680×1130	357
	V-1.0/12	1.0	1.2	7.5	830	1730×610×1320	405
	V-0.8/18	0.8	1.8	9	720	1730×610×1320	405
	V-1.4/7	1.4	0.7	11	1050	1720×750×1340	530
	V-1.3/10	1.3	1.0	11	1050	1720×750×1340	530
	V-1.2/18	1.2	1.8	11	900	1750×800×1400	620

W-type	W-1.6/10	1.6	1.0	15	950	1700×760×1440	500
	W-2.0/8	2.0	0.8	15	1000	1700×760×1440	505
	W-2.5/10	2.5	1.0	22	940	1840×870×1550	760
	W-2.8/10	2.8	1.0	22	1100	1840×870×1550	775
	W-3.0/10	3.0	1.0	22	1100	1840×870×1550	765
	W-2.2/14	2.2	1.4	22	980	1840×870×1550	772

W-type two stage	2-W-4.0/10	4.0	1.0	2×15	1050	2050×1530×1500	1060
W-type two stage	2-W-6.0/10	6.0	1.0	2×22	1100	2150×1400×1550	1440
W-type Three stage	3-W-9.0/10	9.0	1.0	3×22	1100	2800×2000×1200	2100
