Szczegóły Produktu:
Zapłata:
|
| Model: | 4SSC3.6-32-36/300 | Type: | solar water pump |
|---|---|---|---|
| Max.head: | 32m | Max. Flow: | 3.6m3/h |
| Outlet: | 1.25” | Voltage: | 36v |
| Power: | 300w | Controller Model: | MAS3000-36 |
| High Light: | pressure pumping equipment,industrial pumps |
||

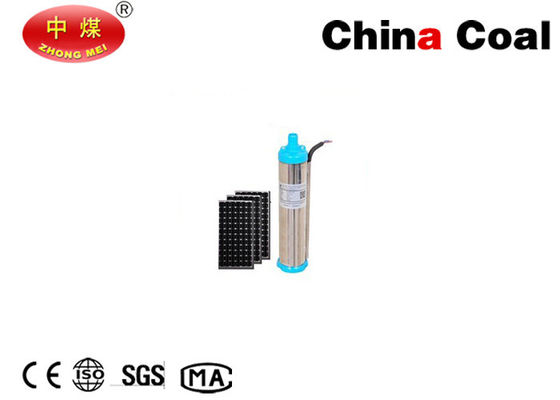

4SSC Solar Water Pump
4SSC Solar Water Pump,Solar Water Pump, Water Pump
Product Description
4SSC SOLAR PUMP
Application area
These project products are mainly used in dry region for irrigation of agriculture. It can be used for drinking water and living water. The living condition could be much improved. It also can be used for fountains.
Material of parts
Outlet: Stainless steel
Pump body: Stainless steel
Motor body: Stainless steel
Screw: Stainless steel
Bearing: NSK
Features:
Oil filled motor
Max. Head: 98m
Max. Immersion Depth: 40m
Accessories
Pump controller, impeller, cable connector, water level sensor, cable for solar panel, solar flashlight
Model instruction
4SSC 3.6-32-36/300
4: Well diameter 4"
S: Solar
S: Stainless steel impeller
C: Centrifugal pump
3.6: Max flow rate
32: Max Head
36: Voltage
300: Motor power
Advanced technology
A. Application innovation
Compared with the traditional alternating current machine, the efficiency is improved 25% by the permanent magnetism, direct current, brushless, non-sensor motor.
B. Techniques innovation
Adopt double plastic package for rotor and stator, motor insulation≥ 300MΩ , the motor security was much improved.
C. Structure innovation
Oil filling, convenient installation and environmental protection
Parameter
|
Type |
Voltage |
Power |
Max. F |
Max. H |
Outlet D |
Diameter |
Controller Model |
|
v |
w |
m3/h |
m |
in |
mm |
||
|
4SSC3.6-32-36/300 |
36 |
300 |
3.6 |
32 |
1.25” |
100 |
MAS3000-36 |
|
4SSC3.8-54-48/500 |
48 |
500 |
3.8 |
54 |
1.25” |
100 |
MAS3000-48 |
|
4SSC6.5-36-48/500 |
48 |
500 |
6.0 |
36 |
1.25” |
100 |
MAS3000-48 |
|
4SSC3.8-98-110/1000 |
110 |
1000 |
3.8 |
98 |
1.25” |
100 |
MAS6000C |
|
4SSC5.1-76-110/1000 |
110 |
1000 |
5.1 |
76 |
1.25” |
100 |
MAS6000C |
Feature Photo
