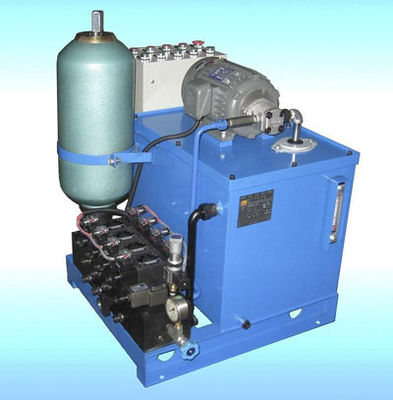

JLF Hydraulic power pack Motor,Pump,Tank,Centermanifold Block
Specifications
12v dc hydraulic power unit
1. good quality pumps
2. D,C valve
3. oil tank:5-6L
4. ISO9001
Hydraulic power pack
Motor,Pump,Tank,Centermanifold Block
General Description
Equipped with a high pressure gear pump, a DC motor, one multi-functional manifold, valves and a tank and
etc, this power unit features power up gravity down circuit.
Starting the motor to lift the machine and the lowering movement is activated by the solenoid valve with the
lowering speed controlled by the pressure compensated flow control valve.
The power units are widely used in the industry of logistic devices such as fork lift, mini lift table act.
Hydraulic Schematic
Remark:
1. Please consult our engineer for the different pump displacement, motor power or tank capacity.
2. The manual override function is available on request.
Special Notes
1. The power unit is of S3 duty.
2. Clean all the hydraulic parts concerned before mounting the power unit
3. The viscosity of the oil should be 15~68 CST.
4. Change the oil after the first 100 hours of using the power unit, then changes the oil every 3000 hours.
5. The power unit should be mounted horizontally.
