| Product Name: | Yuken Type Solenoid coil | Rated voltage: | 220V 110V |
|---|---|---|---|
| Rated Suction: | 50N | Sated Stroke: | 4mm |
| Total Stroke: | ≥8.5 | Operating Power: | 40w |
| Static Oil Pressure: | 21Mpa | Operating Frquency: | 12000T/h |
| Threaded Connection: | M24*1.5 | ||
| High Light: | Hydraulic Solenoid Valve Coil,Auto Solenoid Coil |
||

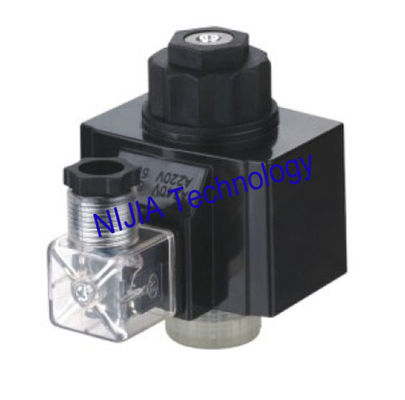

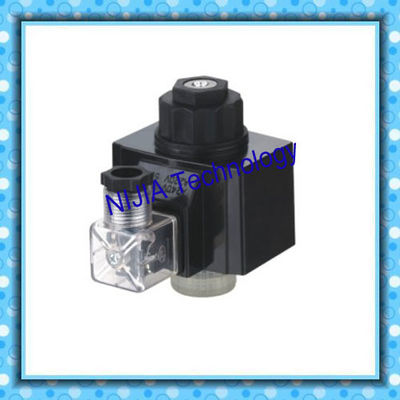

The Yuken hydraulic Solenoid coil suitable for Yuken hydraulic applications . It can be supplied with different power consumptions according to specific requirements.Yuken Type Solenoid coil for Hydraulic
Specifications:
• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 26 mm coil ).
• Heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
• Built-in magnetic yoke made by low carbon iron
• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 26 mm coil ).
The use of other materials is possible upon special agreements . All coils are rated to class F and to IP 65 ( with connector ).
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions . For use in special ambients with high humidity , we suggest the sealed or thermoset version.
Drawings:
Electrical Connections:
Degree of protection: IP 54 ( EN 60529 )
With connector and suitable seals it can reach:
DIN 43650A IP65
KOSTAL (M27X1) IP67
FLYING LEADS IP67
AMP JUNIOR IP65
DEUTSCH DT04 IP69K
AMP SUPERSEAL IP69K
METRIPACK2 IP69K
Competitive Advantage:
1. Professional workshops .
2. High and stable quality .
3. Quick delivery time .
4. Good package in order to void the problems in transportation .
5. Best service from the whole company .
